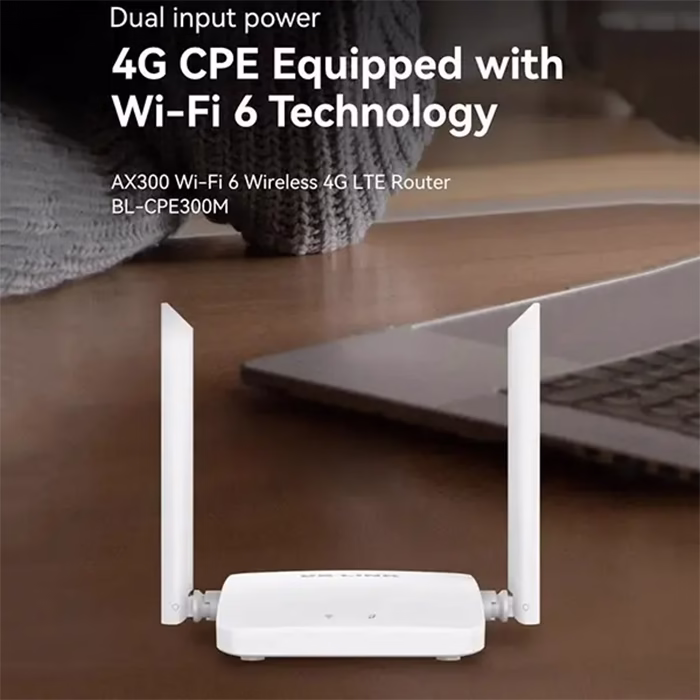

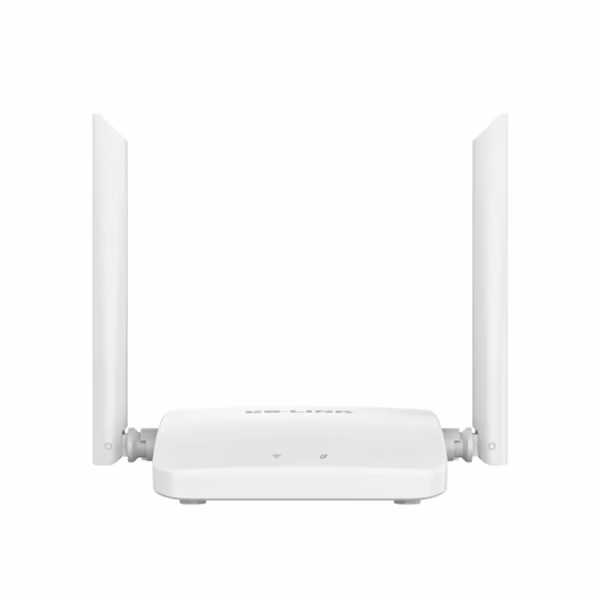

The LB-Link CPE300M AX300 4G LTE Router is a wireless border router featuring Wi-Fi 6 technology with a protocol standard of IEEE 802.11b/g/n/ax. It supports a maximum 2.4 GHz Wi-Fi transmission rate of 288 Mbps and LTE CAT4 speeds of up to 150 Mbps download and 50 Mbps upload. The device operates on the 2.4 GHz frequency band with channels 1 to 13 and a transmit power of 20 dBm. It supports multiple 4G bands including FDD (B1/B3/B5/B8), TDD (B34/B38/B39/B40/B41), and WCDMA (B1/B8).

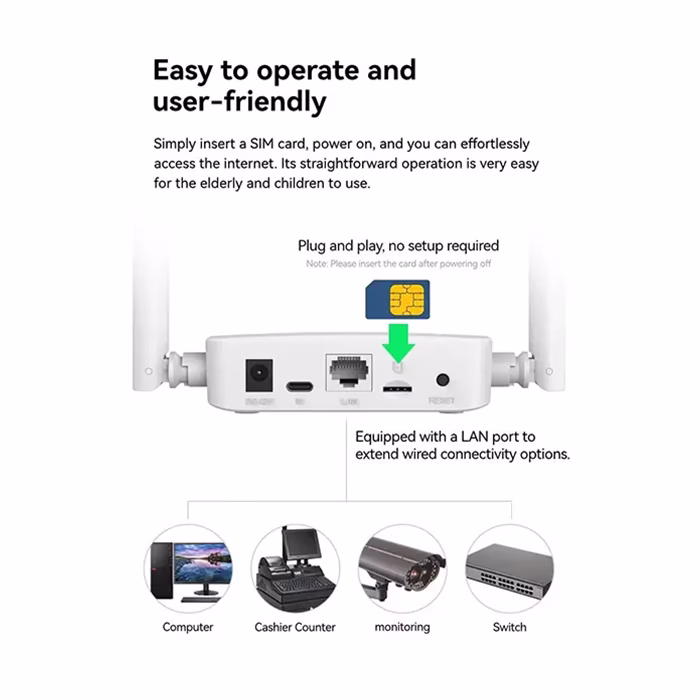

The router includes one 10/100 Mbps LAN port and two external antennas for improved signal strength and coverage. It offers security features such as OPEN, WPA-PSK, WPA2-PSK, WPA3 encryption, MAC/IP filtering, port forwarding, and Wi-Fi black/white lists. Power input options include 5V/2A via USB Type-C or 12V/1A DC. The operating temperature range is 0ºC to 40ºC with 10%-90% humidity without condensation. The router supports easy setup by inserting a SIM card to convert 4G LTE into a Wi-Fi hotspot, suitable for home, office, or outdoor use, and can support up to 32 users simultaneously.
